Product description:
●Housing: stretched aluminum housing, akzonobel stoving varnish finish, corrosion-resistance,
5mm thickness safety glass, clear glass, silicone rubber gasket, die-casting aluminum end cap
Flat cover ring surface to reduce accumulation of drit.
●Housing color: RAL9023 Pearl dark grey
●Mounting plate: Die-casting aluminum with akzonobel stoving varnish finish, corrosion-resistance,
lateral mounting
●LED module: high-power leds on metal-core PCB.
●Light distribution: use optical PMMA secondary light distribution technology,
viewing angle, light-gathering effects can be adjusted by various lens according to demands.
●Platen design: shelter inner wiring and structure to make appearance consise,
secondarily fix the lens on the PCB in case of dropping off during transportation.
●Protection grade: up to IP65 and meet the work requirements of external environment,
in dust-proof and water jet-proof.
SL6157-C20
Wall Light
15°
Warm White
26W
2548lm
100-240V AC
ON/OFFF
Light Source: LED COB
Light direction: Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: 15° reflector
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Surface Mounting
Mounting Location: Wall
SL6157A-9
Wall Light
20°
Warm White
11W
715lm
100-240V AC
ON/OFFF
Light Source: LED 9pcs
Light direction: Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 5°, 12.5°,20°, 30°,45°
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Ceiling Mounting
Mounting Location: Ceiling
SL6157B-9
Wall Light
20°
Warm White
16W
1040lm
100-240V AC
ON/OFFF
Light Source: LED 9pcs
Light direction: Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 5°, 12.5°,20°, 30°,45°
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Ceiling Mounting
Mounting Location: Ceiling

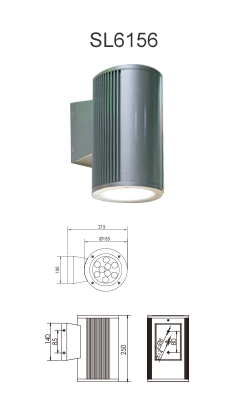

SL6156-C20
Wall Light
15°
Warm White
26W
2548lm
100-240V AC
ON/OFFF
Light Source: LED COB
Light direction: Up or Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: 15° reflector
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Surface Mounting
Mounting Location: Wall
SL6156A-9
Wall Light
20°
Warm White
11W
715lm
100-240V AC
ON/OFFF
Light Source: LED 9pcs
Light direction: Up or Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 5°, 12.5°,20°, 30°,45°
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Surface Mounting
Mounting Location: Wall
SL6156B-9
Wall Light
20°
Warm White
16W
1040lm
100-240V AC
ON/OFFF
Light Source: LED 9pcs
Light direction: Up or Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 5°, 12.5°,20°, 30°,45°
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Surface Mounting
Mounting Location: Wall

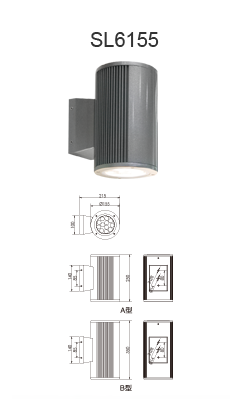

SL6155A-18
Wall Light
20°
Warm White
21W
1365lm
100-240V AC
ON/OFFF
Light Source: LED 18pcs
Light direction: Up and Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 5°, 12.5°,20°, 30°,45°
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Surface Mounting
Mounting Location: Wall
SL6155B-18
Wall Light
20°
Warm White
36W
2340lm
100-240V AC
ON/OFFF
Light Source: LED 18pcs
Light direction: Up and Down
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 5°, 12.5°,20°, 30°,45°
Color Rendition Index: >80
Material: Stretching aluminum housing, die-casting aluminum end cap, tempered glass
Mounting Type: Surface Mounting
Mounting Location: Wall
