Product description:

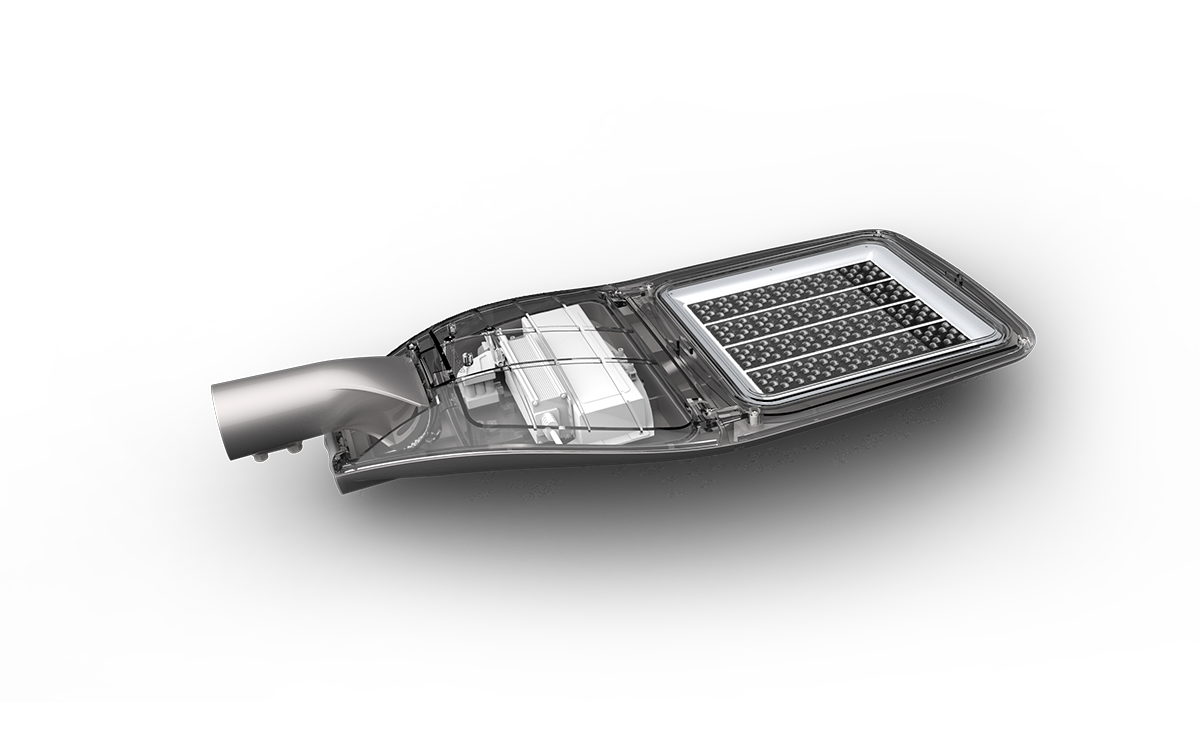

●Housing: Die-casting aluminum housing, 5mm thickness safety glass, clear glass,silicone rubber gasket
Akzonobel stoving varnish finish, corrosion-resistance,
Tool-less, quick-release latch free access to housing with driver compartment and optical unit
convinient to maintenance and repair
●Housing color: RAL9023 Pearl dark grey
●Installation arm: tilt on a vertical pole from 0 to +15°; on a horizontal spigot from 0 to -15°
diameter 42-48mm, tightened with 2 stainless steel screws
●LED module: high-power leds on metal-core PCB.
●Light distribution: use optical PMMA secondary light distribution technology,
viewing angle, light-gathering effects can be adjusted by various lens according to demands.
●ELECTRICAL: 10kV surge protection normally, reserved space for SPD,
Power automatically switches off when opened
●Protection grade: up to IP65 and meet the work requirements of external environment,
in dust-proof and water jet-proof.

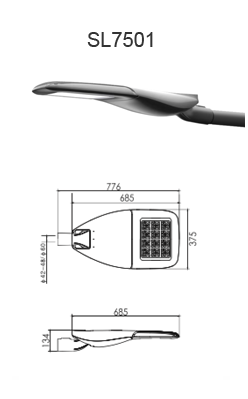

SL7501-C110
Street Light
150x65°
Cool White
110W
10780lm
100-305V AC
ON/OFFF
Light Source: LED 48pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole

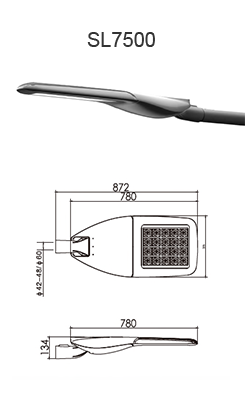

SL7500-C180
Street Light
150x65°
Cool White
180W
17640lm
100-305V AC
ON/OFFF
Light Source: LED 80pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole
SL7501-C80
Street Light
150x65°
Cool White
80W
7840lm
100-305V AC
ON/OFFF
Light Source: LED 36pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole
SL7501-M80
Street Light
150x65°
Cool White
80W
9600lm
100-305V AC
ON/OFFF
Light Source: LED 32pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole
SL7501-M105
Street Light
150x65°
Cool White
105W
12600lm
100-305V AC
ON/OFFF
Light Source: LED 32pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole
SL7500-C150
Street Light
150x65°
Cool White
150W
14700lm
100-305V AC
ON/OFFF
Light Source: LED 80pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole
SL7500-M150
Street Light
150x65°
Cool White
155W
18600lm
100-305V AC
ON/OFFF
Light Source: LED 80pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole
SL7500-M200
Street Light
150x65°
Cool White
205W
24600lm
100-305V AC
ON/OFFF
Light Source: LED 64pcs
Color Temperature: Optional Warm White/ Neutral White/Cool White
Beam Angle: Optional 120x50°, 150x65°, 150x60°, 140x30°, 48°
Material: Die-cast aluminum housing, tempered glass with high light transmission
Mounting Type: Pole
Mounting Location: Pole
