DESCRIPTION:

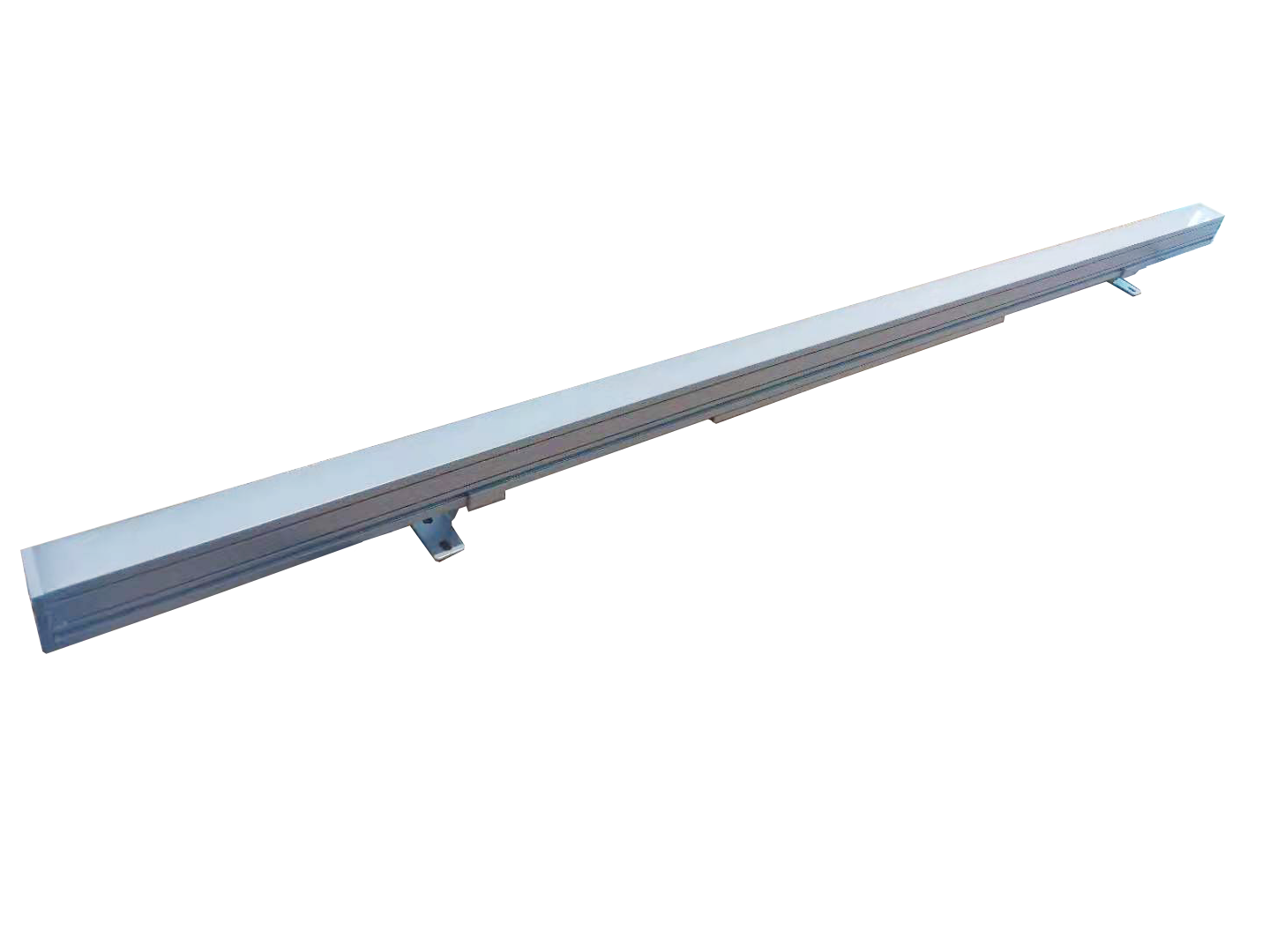

OUTDOOR SURFACE MOUNTED LINEAR LED CHANNEL COVERED BY OPTICAL LENS IN CONTINUOUS ARRAY, 4000K, CRI>90, 835LM, 5 STEP MACADAM ELLIPSE, 15W PER LINEAR, DC19.5-26V, IP66 ,IK08

DEMENSION: 998*30*53mm

1.LAMP: LUXEON 3014  L130-4090001400001(H25DT)     136.9-143.7 lm/W   L80B50：＞50000H  192PCS

2.DRIVER: SHYLON, SL3315-18-SG-8D-192-01+SL3315-SG-4D-02

3.WEIGHT: 1.05kg

4.WORKING TEMPERATURE: -25℃~50℃

CONSTRUCTION:                                   ，

 LIGHT WITH THE DESIGN OF INCREASING HEAT DISSIPATION TO FULLY ENSURE THE STABILITY AND LONG LIFESPAN OF LED FIXTURE. HOUSING BADY MADE OF EXTRUDED ALUMINUM CHANNEL WITH 103° OPTICAL LENS COVER, REMOTE DMX DRIVER, POWER SUPPLY UNIT AND ALL ACCESSORIES.

MANUFACTURER:

SHANGHAI SHYLON OPTOELECTRONIC TECHNOLOGY CO.,LTD.
